Norden Mfg.

18 Bale Edge

• Our largest accumulator.

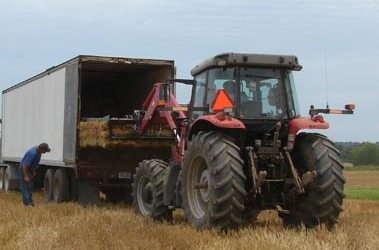

• Good for filling van trailers from the rear.
• Handles bales from 32” to 44” long
• Bundle dimensions are 84” wide and 96” to 132” long
• The 18 bale group has a 17% time savings advantage over the 15 bale as the grab contains 20% more bales, it reduces the number of packs by 17%.
• This bale arrangement allows you to completely fill your 9’x24′ wagon.

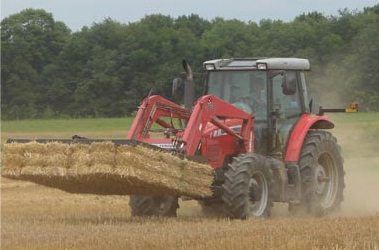

• Loader with at least 2200 lb lift capacity

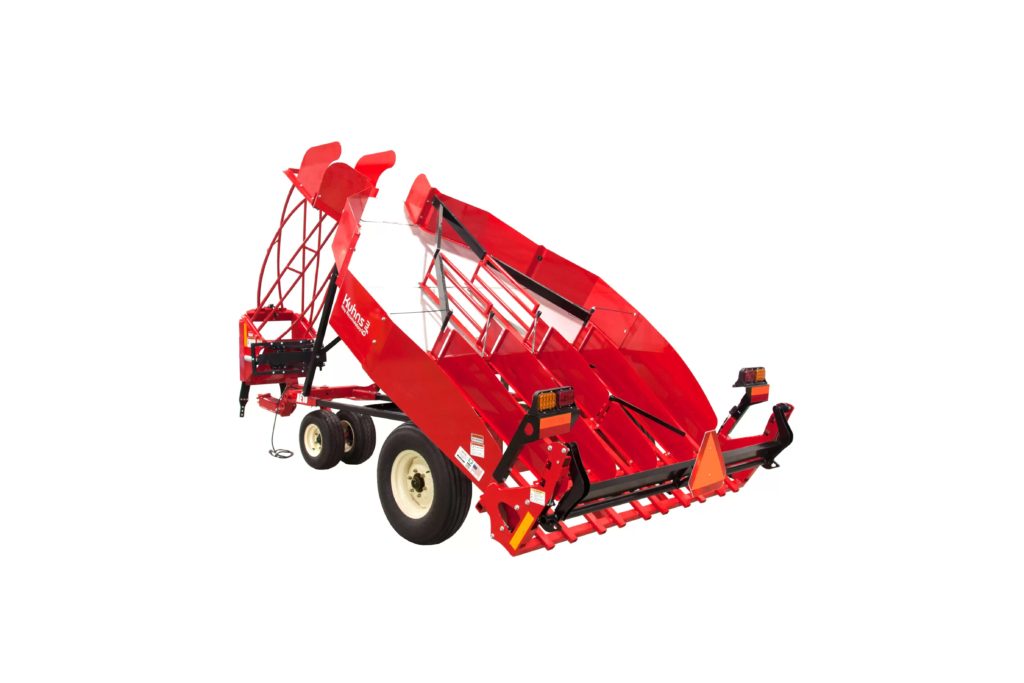

15 Bale Edge

• Handles Bales from 32” to 44” long
• Bundle dimensions are 70” wide by 96” to 132” long
• This bale arrangement allows you to completely fill your 9’x20′ wagon.
• The 15 bale pack has a 33% time savings advantage over the 10 bale as the grab contains 50% more bales, it reduces the number of packs by 33%.
• Loader with at least 1900 lb lift capacity

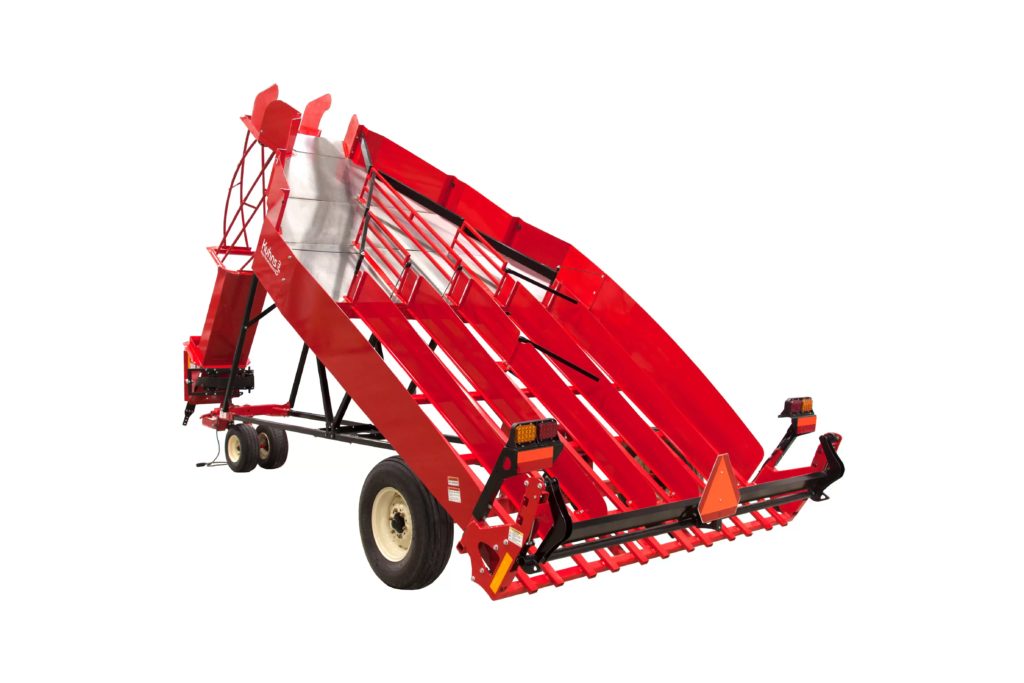

10 Bale Edge

• Handles bales from 32” to 48” long
• Bundle dimensions are 70” wide and 64” to 96” long
• The 1034 accumulator is well suited for small farms.
• The low weight requirement for the grabber allows for the use of a smaller loader.
• If your bales are 36″ long, you can cross stack the bales with the KN510 or 510 grabber.
• Loader with at least 1500 lb lift capacity

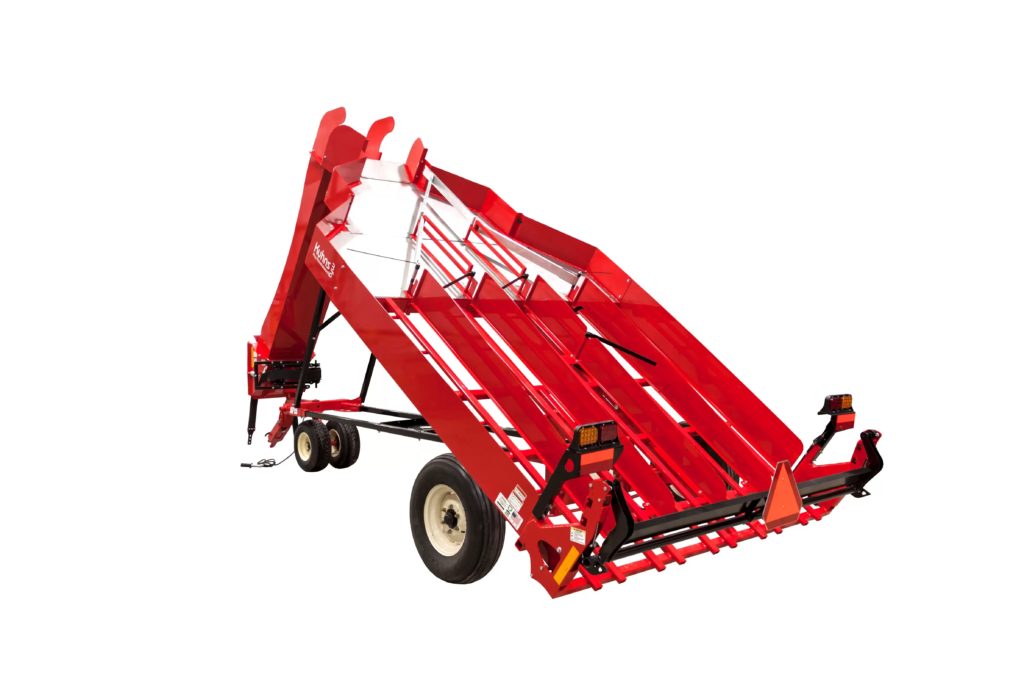

15 Bale Flat

• Handles bales from 32” to 48” long
• Bundle dimensions are 70” wide and 64” to 96” long
• The 1034 accumulator is well suited for small farms.
• The low weight requirement for the grabber allows for the use of a smaller loader.
• If your bales are 36″ long, you can cross stack the bales with the KN510 or 510 grabber.
• Loader with at least 1500 lb lift capacity

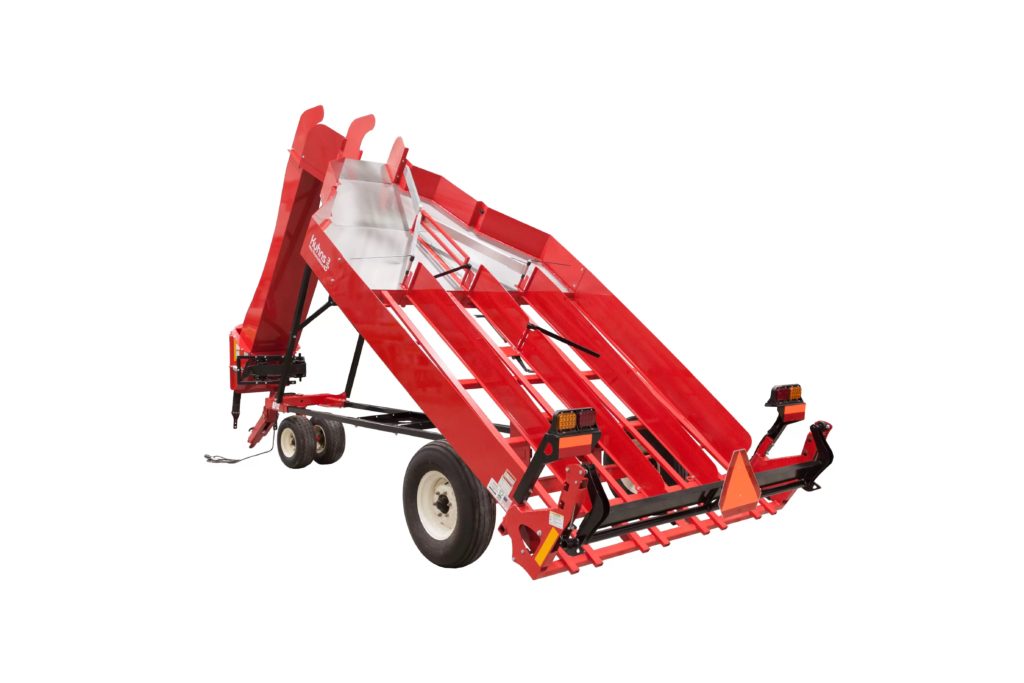

12 Bale Flat

• Handles bales from 32” to 48” long
• Bundle dimensions are 70” wide and 64” to 96” long
• The 1034 accumulator is well suited for small farms.
• The low weight requirement for the grabber allows for the use of a smaller loader.
• If your bales are 36″ long, you can cross stack the bales with the KN510 or 510 grabber.
• Loader with at least 1500 lb lift capacity

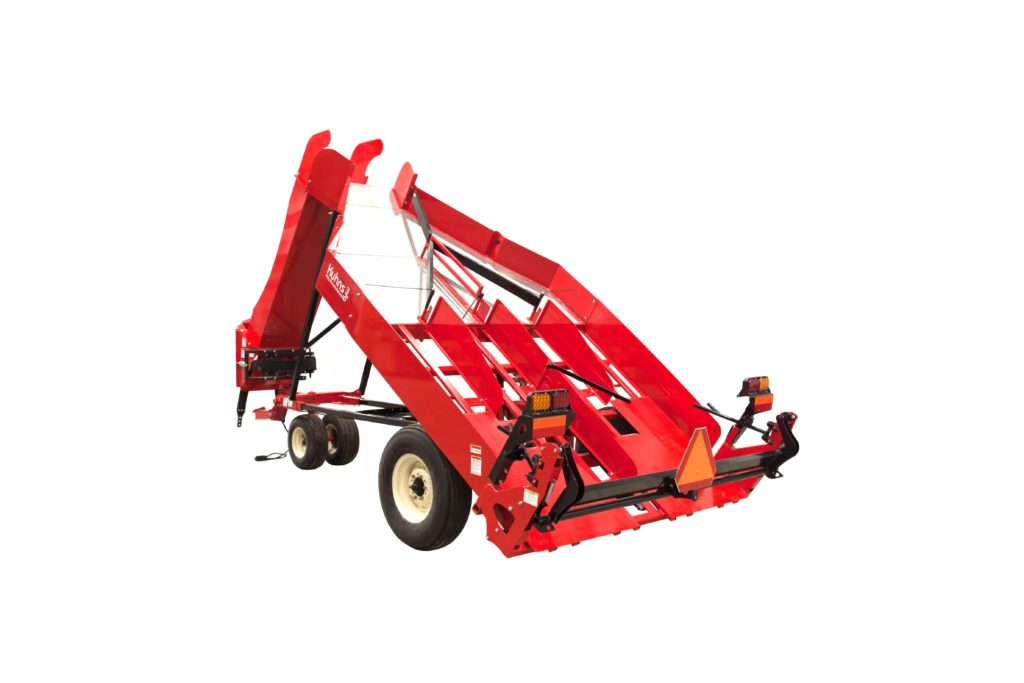

10 Bale Flat

• Handles bales from 32” to 48” long
• Bundle dimensions are 70” wide and 64” to 96” long
• The 1034 accumulator is well suited for small farms.
• The low weight requirement for the grabber allows for the use of a smaller loader.
• If your bales are 36″ long, you can cross stack the bales with the KN510 or 510 grabber.
• Loader with at least 1500 lb lift capacity

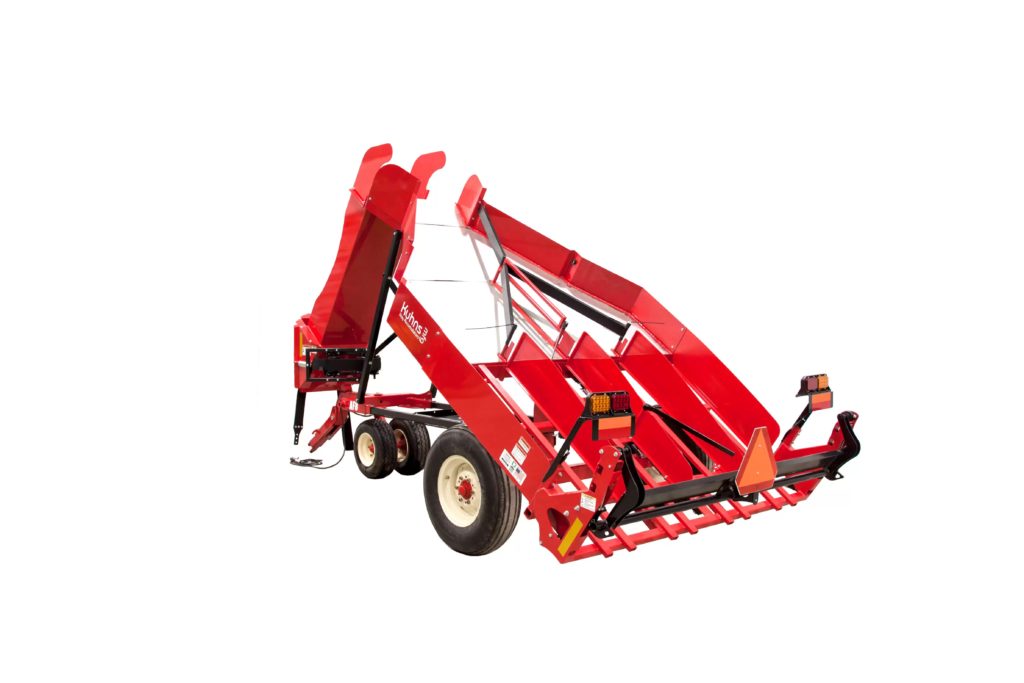

8 Bale Flat

• Handles bales from 32” to 48” long
• Bundle dimensions are 72” wide and can vary from 64” to 96” long
• The 8 bale accumulator is excellent for small farms.
• If your bales are 36″ long, you can cross stack the bales with the 408 grabber.
• Can handle 14×18″ and 16×18″ bales from 32″ to 48″ long at whatever density is needed, with no adjustments.

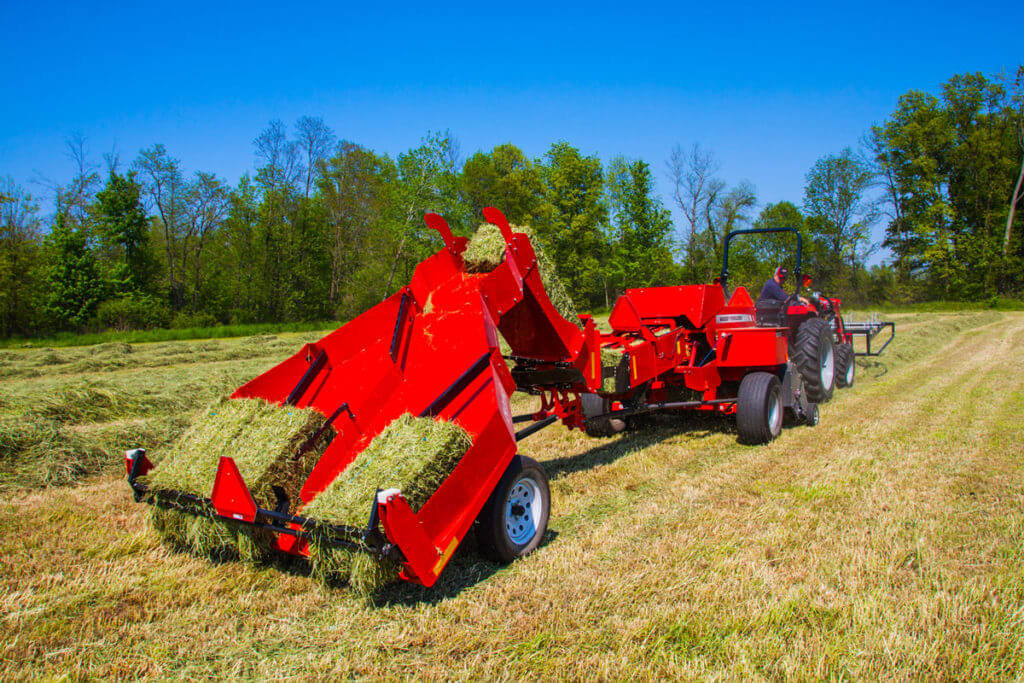

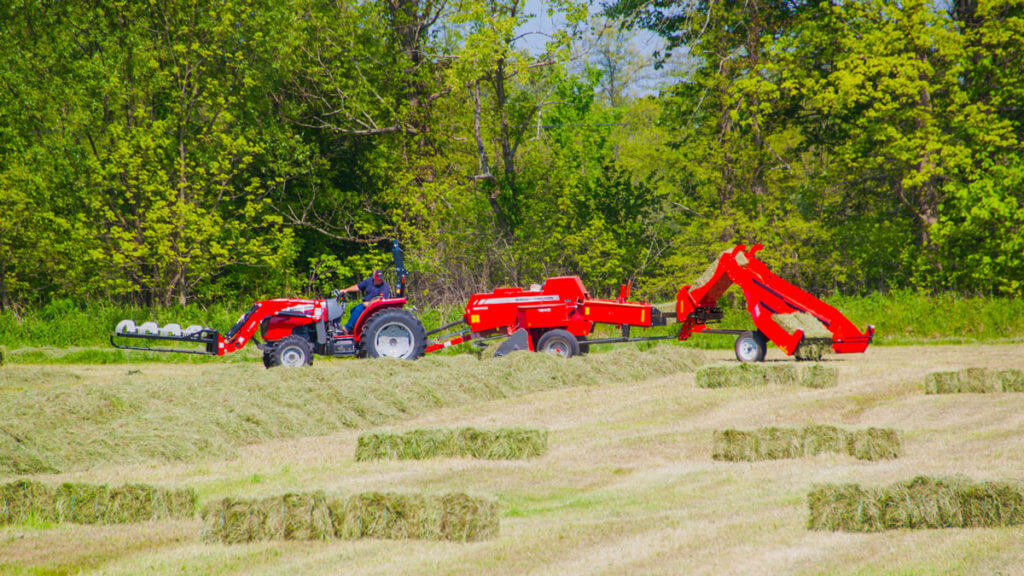

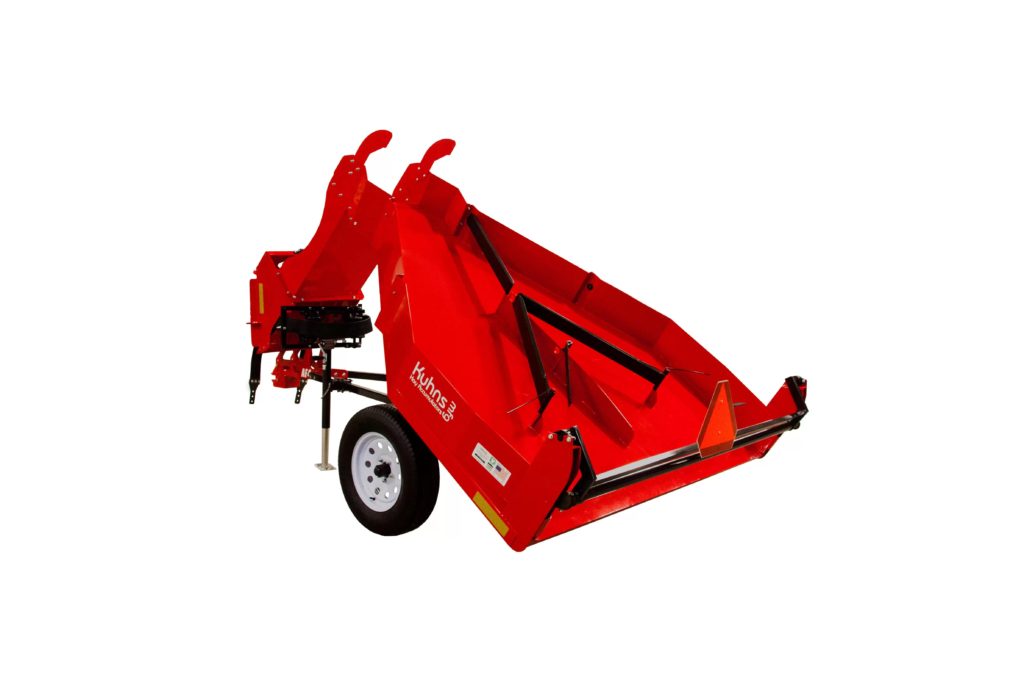

4 Bale Flat

• Our smallest accumulator.
• Handles bales from 32” to 48” long
• Bundle dimensions are 72” wide and length can vary, depending on bale dimensions.
• The AF4 4 bale accumulator is the solution for hay production around 6,000 bales or less per year.
• If your bales are 36″ long, you can cross stack the bales with the EGF8 grabber.
• Can handle 14×18″ and 16×18″ bales from 32″ to 48″ long at whatever density is needed, with no adjustments.
